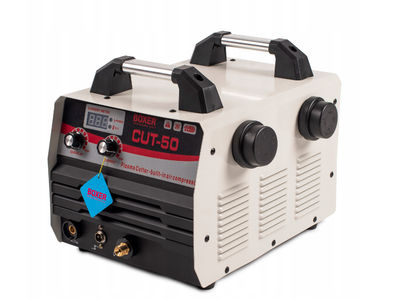

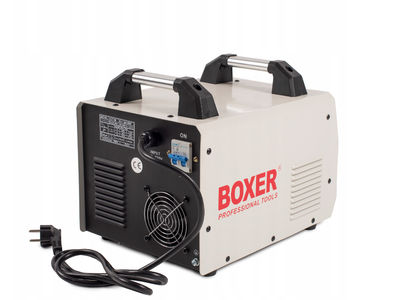

BX3026

• Powerful Cutting: Delivers a cutting current of 50 amps with a 60% duty cycle, ensuring efficient performance for demanding tasks.
• Built-in Compressor: Conveniently integrated compressor eliminates the need for external air supply, making it a portable and hassle-free solution.
• HF Ignition: Reliable and quick arc starting for precise cuts.
• Pilot Arc: Improves cut starting accuracy and reduces electrode wear.
• MOSFET Technology: Offers superior performance, durability, and efficiency.
• Compact Design: Lightweight and portable for easy handling and storage.

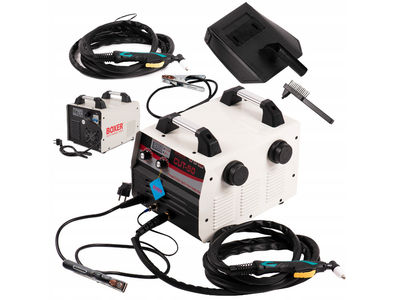

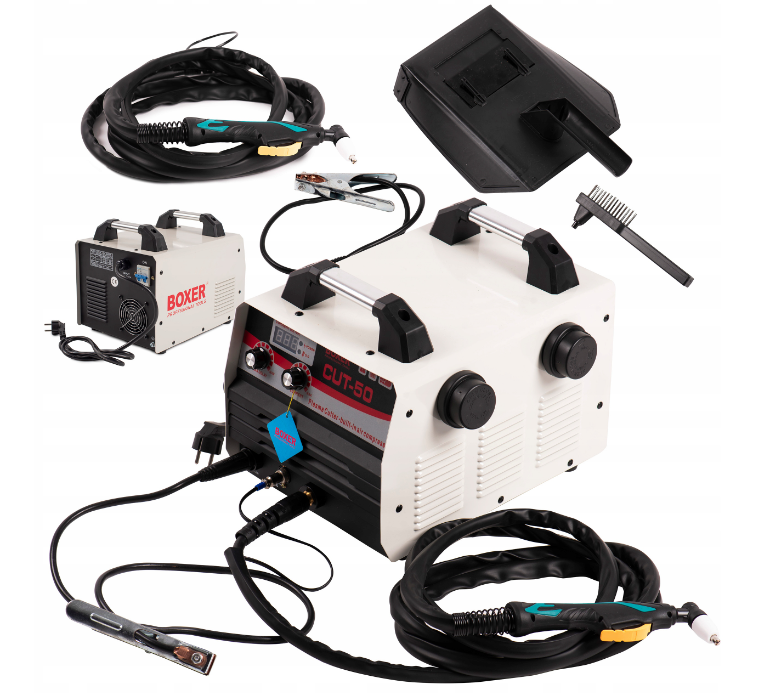

• Complete Package: Includes plasma cutting torch, ground cable, service key, nozzle, and electrode for immediate use.

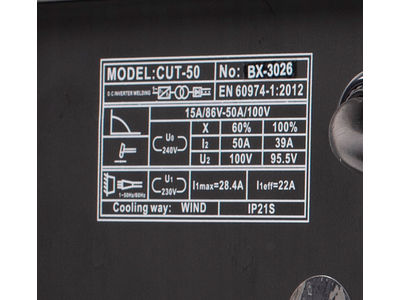

Technical Specifications

• Catalog number: BX-3026
• Supply voltage: AC 230V, 50 Hz
• Technology: MOSFET
• Cutting current: 50 A
• Duty cycle: 60%
• Max. cutting thickness: 12 mm
• Max. current consumption: 28.4 A
• Max. power consumption: 6.6 kVA
• Air flow: 0.2 m³/min
• Ignition method: HF
• Weight: 27 kg
• Dimensions: 410 x 205 x 615 mm
